TRANSPORTATION AND INSTALLATION
OF OFFSHORE FACILITIES

  • Pipelay Barge
  • Transportation Barge
speed
GENERAL PARTICULARS

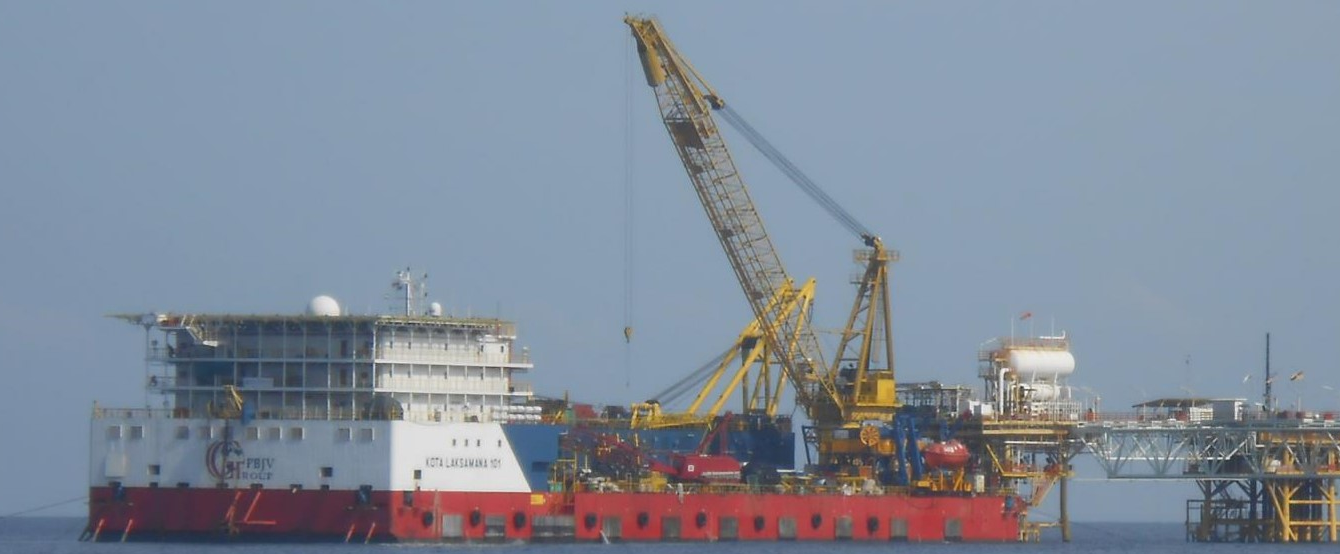

Vessel Name

:

KOTA LAKSAMANA 101

Owner

:

KOTA LAKSAMANA 101 LTD

Type

:

Accommodation and Pipelay Barge for Shallow & Medium Water

Built

:

2011

Delivery

:

3rd Quarter 2012

Flag

:

Malaysia

Port of Register

:

Port Klang

Classification

:

RINA

Notation

:

A1 Accommodation Barge & CRC
MAIN DIMENSION

Length Overall

:

137.25mm

Breadth Moulded

:

37.82m

Depth Moulded

:

9.00m

Maximum Draft

:

4.50m

Minumum Draft

:

2.8m

GRT/NRT

:

19760/5928
DISPLACEMENT

Full Load

:

21947 MT

Light Ship

:

11030 MT

Deadweight

:

10917.70 MT
DECK AREA AND LOADING

Clear Deck Area

:

1200 m2

Deck Loading

:

12.5 MT/m
DECK AREA AND LOADING

Single Cabin x 10 (10 Men)
Twin Sharng Cabin x 133 (266 men)
4 Men Cabin x 6 (24 men)

Total onboard

:

300 men

Office

:

Barge Master Office (1), Client Office (1), Office (6)

Other Facilities

Galley (1), Mess hall (1), Cinema Room (1), Recreation Room (1), Internet Room (2), phone (1), Gymnasium (1), Conference Room (1), Laundry Room (1), Coffee Shop (1), Hospital and Sick Bay (1)

SEWAGE TREATMENT PLANT

Provision for 300 Personnel

LIFE SAVING EQUIPMENT

Rescue Boat

:

1 x 6 men SOLAS/USCG Approved

Life Raft

:

24 x 25 men SOLAS/USCG Approved

Life Jacket

:

600 units SOLAS Approved

Life Buoy

:

12 units SOLAS/USCG Approved

Fire Fighting Equipment

  • Wet Chemical for Galley Hood

  • FM-200 Switch Board Room

  • Automatic Sprinkler System for Accommodation, Public Area, Working Area and storage

  • Water Mist System for Machinery Room

  • Automatic Fire and Smoke Detection System - Accommodation, Public Area, Working Area and Storage

  • Fire Monitor System

LIFE SAVING EQUIPMENT

Rescue Boat

:

1 x 6 men SOLAS/USCG Approved

Life Raft

:

24 x 25 men SOLAS/USCG Approved

Life Jacket

:

600 units SOLAS Approved

Life Buoy

:

12 units SOLAS/USCG Approved

Fire Fighting Equipment

  • Wet Chemical for Galley Hood

  • FM-200 Switch Board Room

  • Automatic Sprinkler System for Accommodation, Public Area, Working Area and storage

  • Water Mist System for Machinery Room

  • Automatic Fire and Smoke Detection System - Accommodation, Public Area, Working Area and Storage

  • Fire Monitor System

HELICOPTER DECK

ABS Approved UK CAA CAP 437 Approved for “Sikorsky S92”

COMMUNICATION & NAVIGATION EQUIPMENTS

VSAT

:

1 x SEATEL 9797-32 C-BAND & KU-BAND TX/RX ANTENNAS

GMDSS

:

1 x FURUNO RC-1800F

GMDSS VHF

:

3 X McMurdo R2

VHF /FM

:

2 x FURUNO FM-88005

VHF/AM

:

1 x ICOM IC-A110

VHF AM

:

1 x ICOM 1C-A6

UHF VHF Portable

:

2 x FURUNO GM 300

Navtex Receiver

:

1 x FURUNO NX-700A

SART

:

2 x McMurdo S4

EPRIB

:

1 x McMurdo ES SMARTFIND

UAIS

:

1 x FURUNO FA-150

SSAS

:

1 x FURUNO FELCOM-15

Marine Radar X-Band

:

1 x FURUNO FAR -2827

Echo Sounder

:

1 x SKIPPER GDS102

GPS

:

1 x FURUNO GP 150

Gyro Compass

:

1 x RAYTHEON ANSCHUTE 110-233

Magnetic Compass

:

1 x CASSENS & PLAITH REFLECTA 17
AUXILIARY EQUIPMENT

Generator Main

:

4 x 1500 kW

Emergency

:

1 x 500 kW

Air Compressor

:

2 x 875 cfm @ 10 Bar

Air Receiver

:

2 x 3000 Liters @ 10 Bar

Water Maker / RO

:

2 x 70 MT/Day

Oily Water Separator

:

1 M3/HRS @ 15 PPM
PIPELAY SYSTEM

Pipelay Capacity

:

Max 60 inch Coated Pipe

Tensioner Machine

:

2 x 70 MT

A&R Winch

:

1 x 182 MT

Work Station

:

x Beveling Station
1 x Line-up Station
4 x Welding Station
2 x NDT & Repair
2 x Field Joint Coating Station

Side Davits

:

6 x 50 MT

Stinger

:

Rigid Type

1st Section Length

:

42 M

2nd Section Length

:

19 M

Welding Machines

:

2 x 500 amp Miller Big Blue Eco Pro 5
13 x 500 amp Lincoln Welding Machine
CRANE

Main Crane

:

PC300 Favelle Favco

Main Hoist

:

280T rad 19.0M at 75°

Auxiliary Hoist

:

32T @ All radius with Man Riding

Crawler Crane

:

Optional
MOORING AND TOW SYSTEM

Winches

:

8 x Hydraulic Mooring Winches

Line Pull

:

125 MT @ 13m/min at 1st speed @ 1st Layer

Wire Size

:

52 mm Dia

Wire Length

:

1500M

Anchor Type/Weight

:

8 x 10 MT - Delta Flipper Anchors
STORM ANCHOR

Wire Size

:

64 mm Dia

Wire Length

:

500 M

Brake Holding

:

200 MT @ 2nd Layer

Anchor Type

:

1 x 5 MT - Delta Flipper Anchor

Pull Capacity

:

300kN x 9m/min
TANKS CAPACITY

Fuel Oil

:

4797.57 M/3

Ballast Water

:

7248.4 M/3

Potable Water

:

1965.43 M/3

Fresh Water

:

4744.1 M/3

Lube Oil

:

57.43 M/3

Hydraulic Oil

:

57.44 M/3
speed

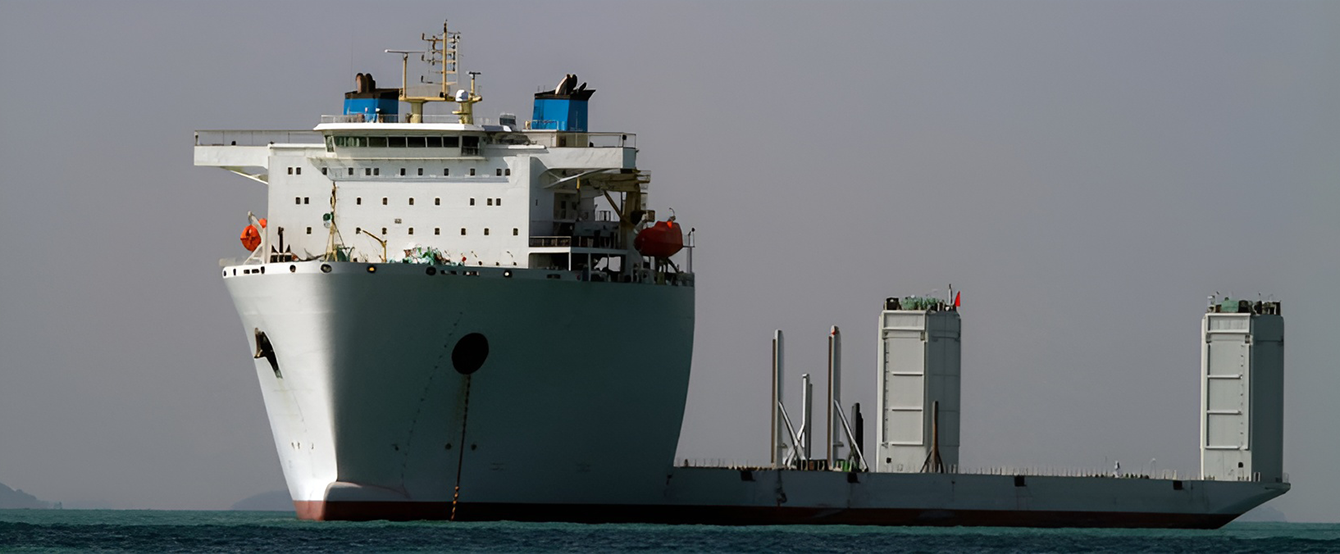

DECK TRANSPORT VESSEL

DP System: DP-2 (optional)

Speed

13.5 knots

Propulsion

2 x 5250 kW
2 fixed pitch propellers

Bow thrusters

2 x 1200 kW

LOA

216.7 m (711 ft)

LBP

212.1 m (696 ft)

LBP

212.1 m (696 ft)

Breadth moulded

43.0 m (141 ft)

Loaded Draft

9.68 m (31.8 ft)

Deck Submersion

13.0 m (42.7 ft)

Hull Depth

13.0 m (42.7 ft)

Cargo Deck

177.6 x 43.0 m (582.7 x 141 ft)

Bulkheads

7 Transverse bulkheads Longitudinal bulkheads - 1 at centerline and 2 at 11.375 meters from centerline (37.3 ft)

Web frame spacing

Every 2.4 meters (7.9 ft)

Allowable load on maindeck

25 tons/m2

Casings

9.6 x 5.8 x 17.4 m (31.5 x 19.0 x 57.1 ft)

Deadweight

48,232 tons

Ballast System

4 * 4,000 m3/hr aircompressors
4 * 1,200 m3/hr pumps
